SKU: U6-Lite

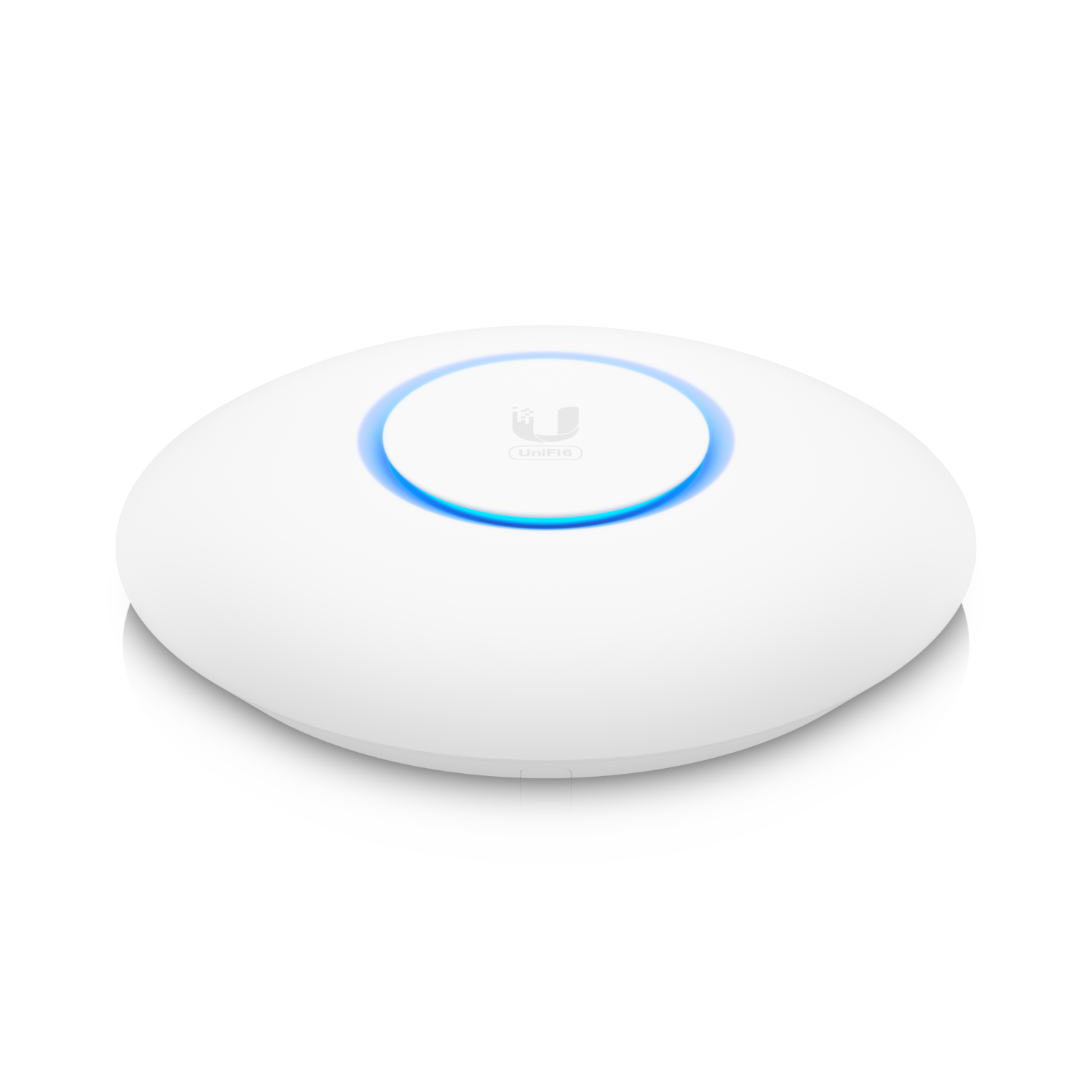

Access Point U6 Lite
SKU:
Access Point U6 Lite
Compact, dual-band WiFi 6 access point with flexible mounting options.
2 year warranty
Features:
- 5 GHz WiFi 6 band, 2.4 GHz WiFi 4 band
- 1.5 Gbps aggregate throughput rate
- Focused antenna pattern for optimal ceiling or wall mounting
- (1) GbE RJ45 port (PoE In)
- Fits UAP nanoHD covers and the recessed mounting bracket
Managed with UniFi Network application: Version 5.14.3 and later
Note. Due to chip supply shortages, each UniFi6 AP LED has been limited to white and blue indicators.
Product Summary
| Mechanical | |
|---|---|
| Dimensions | Ø160 x 33 mm (Ø6.3 x 1.3") |
| Weight | Without mount: 300 g (10.6 oz) With mount: 315 g (11.1 oz) |
| Enclosure materials | Polycarbonate, aluminum |
| Mount materials | Polycarbonate, SGCC steel |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE, passive PoE (48V) |
| Power supply | PoE 48V, 0.32A PoE adapter (Optional) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 12W |
| Max. TX power 2.4 GHz 5 GHz | 23 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz | 300 Mbps 1201 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 2.8 dBi 3 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
